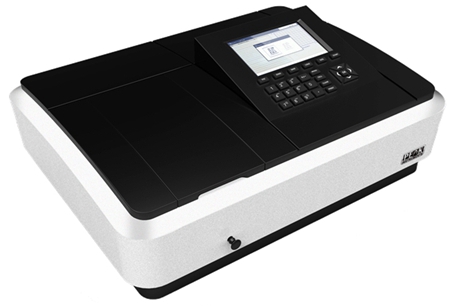

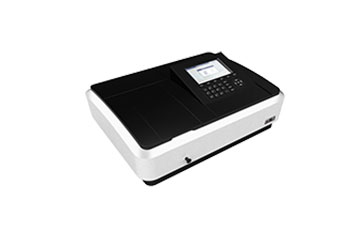

X-8200 Series
2017-8-7
International advanced xenon light (Hamamatsu) source makes the instrument more stable and reliable. Three years warranty. Adopt the newest microcomputer technology and electronic control system. Optimized optical system and structure can both extend new functions and ensure the accuracy, stability and durability.
Main Features
1. 7 inch TFT screen and long life, more comfortable and sensitive silicone buttons or capacitive touch screen. The instrument can show various scanning curves and charts for users to various tests without computers.
2. Support USB storage and different data formats such as Excel, txt and image(via PC software). Users can output test data to flash memory, open and edit them on computers directly without any auxiliary software.
3. Advanced hardware and 32-bit Cortex_M3 processor with the clock speed 120MHz. The equipment can store 5000 pieces of data and 500 curves.
4. High-efficiency holographic grating of 1200 lines/mm and low stray light.
5. The equipment has long-life socket type xenon lamp which can work up to 5 years. Socket type lamp make the replacement much easier.
6. Excellent silicon photodiode can guarantee the equipment is highly sensitive and stable.
7. Huge sample chamber and various accessories can meet all kinds of needs.
8. Can be connected to printer directly and output test charts and data.
9. Powerful PC software.
10. Standard RS232, USB(A) and USB(B) port for printer, data transfer and PC software.
Specifications
Model
X-8200
X-8200S
X-8200T
X-8200TS
Display
7 inch TFT
7 inch TFT
Keyboard Control
Silicone Buttons
Touch Screen
Optical System
Double Beam
Holographic grating,
1200 lines/mm
Slit Width
2nm
1nm
2nm
1nm
Wavelength Range
190 - 1100nm
Wavelength Accuracy
±0.6nm
Wavelength
Repeatability
≤0.2nm
Photometric Accuracy
0.3%T (0-100%T), ±0.005A(0-0.5A),
±0.01A(0.5-1A)
Photometric Repeatability
≤0.2%T (0-100%T), 0.003A(0-0.5A),
0.005A(0.5-1A)
Stray Light
≤0.1%T@220nm,360nm
Stability
±0.002A/h@500nm
Photometric Range
0-200%T, -0.3-3.0A, 0-9999C(0-9999F)
Baseline Flatness
±0.002A(200-1000nm)
Noise
0.002A@500nm
Working Mode
T,A,C,E
Wavelength Setting
Automatic
Scanning Speed
High, Medium and Low.
Detector
Solid Silicon
Photodiode
Light Source
Xenon Lamp
Data Output
RS232C Serial, USB
Drive, USB HOST
Processor
Cortex_M3, 120Mhz
Power Requirements
AC
110-220V 50-60Hz
Shipping Dimensions
& Weight
790*660*370mm, 29kg
