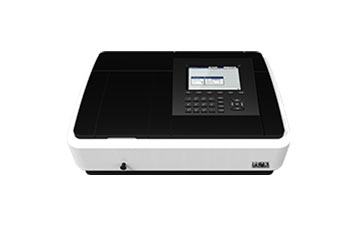

C-7000V
2017-7-20
Steady, modern and elegant appearance design. Adopt the newest microcomputer technology and electronic control system. Optimized optical system and structure can both extend new functions and ensure the accuracy, stability and durability.
Main Features
1. 7 inch color LCD screen and long life, more comfortable and sensitive silicone buttons.
2. Support USB storage and different data formats such as Excel, txt and image(PC software). Users can output test data to flash memory, open and edit them on computers directly without any auxiliary software.
3. Standard RS232, USB(A) and USB(B) port.
4. High-efficiency holographic grating of 1200 lines/mm and ultra-low stray light.
5. The equipment has long-life socket type tungsten-halogen and deuterium lamps, can switch the lamps according to test needs and record its working time automatically. Socket type lamps make the replacement much easier.
6. Excellent silicon photodiode can guarantee the equipment is highly sensitive and stable.
7. Huge sample chamber and various accessories can meet all kinds of needs.
8. Can be connected to printer directly and output test charts and data.
9. Powerful PC software can realize full wavelength scanning function.
Specifications
Model
C-7000V
Display
7-inch color LCD
screen.
Wavelength
Range
320 - 1100nm
Slit
Width
2nm
Wavelength
Accuracy
±0.3nm
Wavelength
Repeatability
≤0.2nm
Photometric
Accuracy
0.3%T (0-100%T) ,
±0.002A(0-0.5A) , ±0.004A(0.5-1A)
Photometric
Accuracy
≤0.15%T (0-100%T),
0.001A(0-0.5A), 0.002A(0.5-1A)
Stray
Light
≤0.05%T@220nm,360nm
Stability
±0.002A/h@500nm
Baseline
Flatness
±0.002A
Noise
±0.0005A
Working
Mode
T, A, C, E
Wavelength
Setting
Automatic
Photometric
Range
0-200%T, -0.3 - 3A,
0-9999C(9999F)
Detector
Solid Silicon
Photodiode
Software
Optional with
scanning function
Printer
Optional
Keypad
Silicone buttons
Data
Port
USB
Light
Source
Tungsten Halogen Lamp
Power
requirements
AC110-220V 50-60Hz
Humidity
Range
Less than 85%
Shipping
Dimensions
&
Weight
730*610*390mm, 21kg
