1mg balance
2023-3-27

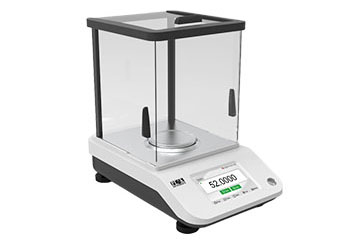

PEAK INSTRUMENTS Electronic Balance offers a high level of weighing accuracy which is ideally suitable for weighing small as well as large quantities of substance for different laboratory weighing applications. Our balances are ergonomically designed with see-through glass door draft shield to prevent the external factors affecting the reading accuracy.
Main Features
- 1. Aluminium alloy body and stainless steel platform with clear glass wind shield.
- 2. 4.3 inches high resolution TFT capacitive touch screen for much easier operations, display with backlight make it easier to read under all conditions.
- 3. Electromagnetic sensor technology.
- 4. Multiple functions like weighing, parts counting, percent weighing, check weighing, animal weighing, density determination(kits optional) and multi weighing units.
- 5. Built-in ARM32-bit microprocessor makes the instrument run fast and measure with high accuracy.
- 6. External/Internal calibration and support Bluetooth printer(optioinal).
- 7. USB interfaces for PC connection and data export.
Specifications
|
Model |
TE3003 |
TE5003 |
TE3003C |
TE5003C |
|
Capacity |
300g |
500g |
300g |
500g |
|
Readability |
1mg |
1mg |
1mg |
1mg |
|
Calibration |
External |
External |
Internal |
Internal |
|
Weighing Units |
gram, carat, ounce, pound, troy ounce, Newton |
|||
|
Applications |
Weighing, Parts Counting, Percent Weighing, |
|||
|
Stabilization Time |
≤4 seconds |
≤4 seconds |
≤4 seconds |
≤4 seconds |
|
Display |
4.3 inch capacitive touch screen |
|||
|
Pan Size |
80mm |
130mm |
80mm |
130mm |
|
Assembled Dimensions & N.W. |
360*220*320mm |
360*220*320mm |
360*220*320mm |
360*220*320mm |
|
Shipping Dimensions &G.W. |
520*380*500mm |
520*380*500mm |
520*380*500mm |
520*380*500mm |
|
Communication |
USB |
USB |
USB |
USB |
|
Power Supply |
DC12V 1A |
DC12V 1A |
DC12V 1A |
DC12V 1A |
