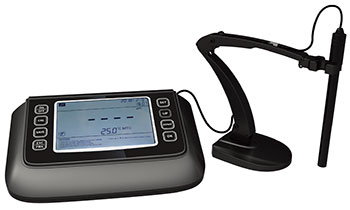

S-630 pH/mV/Conductivity/DO Meter
2018-7-16
Multi-parameter analyzer for high precision measurement in laboratory covering 10 kinds of electrochemical parameters like pH, conductivity and dissolved oxygen. Suitable for the fields of petroleum, chemical, pharmacy, power plants and environmental protection, and also widely used in areas of education and scientific research.
●6.5 inch LCD screen which is intuitive and can show more parameters. Humanized design of operating interface makes operations simpler.
●Omron long lasting and light touch panel can be used more than 100,000 times.
●Auto calibration, auto temperature compensation, data storage, USB data export, clock, wireless printing, function setup, smart self-diagnosis and other intelligent functions.
●Built-in big memory can store 500 sets of test data which can be saved and transferred to USB and opened with Excel, very easy and convenient for edit.
●Auto recognition of standard pH buffer solutions and there are three kinds of standard buffer for option: USA series, NIST series and China series.
●Auto recognition of eight kinds of standard conductivity solution and there are two series of standard solution for option: USA and China series.
● Adopt advanced conductivity measurement technology, one point calibration of conductivity electrode can meet the measuring accuracy requirements for test 0.5μ S/cm ~ 200mS/cm.
● Able to switch between conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale.
●DO mode has functions of ATC, auto salinity compensation and auto pressure compensation.
●New structure polarographic DO electrode can measure temperature, salinity and dissolved oxygen simultaneously, equipped with special DO electrode calibration sleeve, only need 3~5 minutes for polarization.
●Combined diaphragm cap makes it extremely convenient to replace the sensitive membrane just by screwing the new cap to the electrode.
●Optional Bluetooth module and support wireless Bluetooth printing to make operations much easier for users. Optional data transmission to cell phone via wireless Bluetooth.
●Smart judge of electrode status to ensure accurate use for operators.
● IP54 waterproof and dustproof
Specifications
|
pH |
Measuring range Resolution Accuracy Input current Input impedance Stability Temp compensation |
(-2.00 ~ 18.00) pH 0.1/0.01 pH ±0.02 pH ≤2×10-12 A ≥1×1012 Ω ±0.01 pH/3h (0 ~ 100)℃ (auto or manual ) |
|
mV |
Measuring range(mV/ORP/EH) Resolution Accuracy |
-1999.9mV ~ 0 ~ 1999.9mV 1mV ±0.1% FS |
|
Conductivity
|
Measuring range
Resolution Accuracy Temp compensation Electrode constants Reference temperature |
Conductivity (0.00~20.00) μS/cm (20.0~200.0) μS/cm (200~2000）μS/cm (2.00~20.00) mS/cm (20.0~200.0）mS/cm (200~2000) mS/cm (K=10) Resistivity: (0 ~ 100) MΩ·cm TDS: (0 ~ 100) g/L Salinity: (0 ~ 100) ppt 0.01/0.1/1μS/cm 0.01/0.1/1 mS/cm Electrode: ±0.5% FS, Instruments: ±0.80%FS (0 ~ 100)℃ (automatic) 0.1/1/10 cm-1 25℃, 20℃,18℃ |
|
Dissolved Oxygen
|
Measuring range Resolution Accuracy Response time Residual current Temp compensation Salinity compensation Pressure compensation Automatic calibration Electrode type |
(0 ~ 20.00）mg/L(ppm) (0 ~ 200.0)% 0.1/0.01 mg/L(ppm) 1/0.1 % Electrode: ±0.10 mg/L, Instrument: ±0.40 mg/L ≤30s (25℃, 90%response) ≤0.1 mg/L (0 ~ 100)℃ (automatic) (0 ~ 45) ppt (automatic) (80 ~ 105) kPa (automatic) Air saturated by water, water saturated by air Polarographic |
|
Temperature
|
Measuring range Resolution Accuracy |
0℃~ 100℃ 0.1℃ 5~ 60℃: ±0.4℃ Others: ±0.8℃ |
|
Other Parameters |
Data storage Power requirements Communications Dimensions & Weight |
500groups DC12V/1A USB, Wireless Bluetooth 270×170×70mm/600g |
|
Working Conditions |
Ambient temperature Ambient humidity IP grade |
5 ~ 35℃ ≤85% IP54 |
Standard Configuration
1. S-630 benchtop
multi-parameter analyzer 1 unit
2. Composite pH
electrode 1
pc
3. Rotary electrode
holder 1 pc
4. pH calibration
buffer 1 set
5.
Conductivity electrode 1 pc
6. DO
Electrode 1
pc
7. DO membrane cap 3
pcs
8. DO electrode electrolyte (30mL) 1 bottle
9. 12V power adapter 1 pc
10. Instruction
manual 1 copy
