2018-7-12
Main Features
●Large LCD screen with controllable white backlight.
●Built-in microprocessor chip with functions of auto calibration, auto temperature compensation, data storage, function setup,self-diagnosis, auto shut off, low voltage display.
●Auto recognition of standard pH buffers and there are three kinds of standard buffers for option: USA series, NIST series and China series.
●Can set up pH measurement modes of high purity water and ammonia added pure water.
●Humanized designs like rack and skid proof shell make it more convenient for users.
● Equipped with standard solution and optional carrying case for outdoor purpose.
● IP57 waterproof housing.
Specifications
pH |
Measuring range |
(-2.00 ~ 19.99)pH |
Resolution |
0.1/0.01 pH |
|
Accuracy |
±0.02 pH |
|
Input current |
≤2×10-12 A |
|
Input impedance |
≥1×1012 Ω |
|
Stability |
±0.01 pH/3h |
|
Temp compensation |
(0 ~ 100)℃ (automatic) |
|
mV |
Measuring range |
-1999mV ~ 0 ~ 1999mV |
Resolution |
1mV |
|
Accuracy |
±0.1% FS |
|
Others |
Data storage |
200 groups |
Storage contents |
Series number, measuring value, measuring unit and temperature |
|
Power |
Two AA batteries(1.5V) |
|
Size & Weight |
160×90×30mm/360g (instrument) 480×300×60mm/1KG (with packing) |
|
Quality certificates |
ISO9001, CE |
|
Working Conditions |
Ambient temperature |
(5 ~ 35)℃ |
Ambient humidity |
≤85% |
|
IP grade |
IP57 |
Standard Confituration

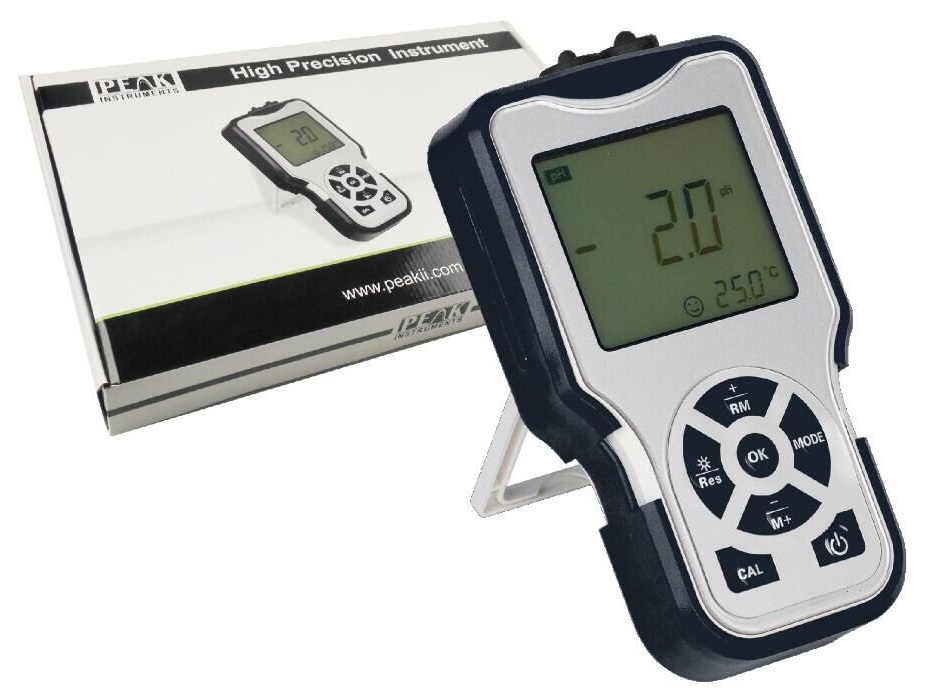

1. P-510 pH/mV meter 1 unit
2. pH electrode 1 pc
3. Standard pH buffer(pH4.00, pH6.86 and pH9.18/50ml) 1 bottle/each
4. Backup AA battery 2 pcs
5. Operation manual 1 copy
6. Temperature electrode 1 pc
